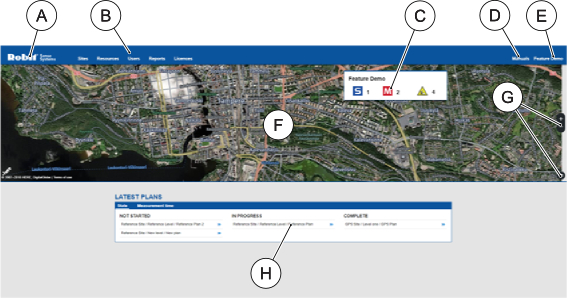

The main screen of the Cloud Service application consists of the following functions and features:
| UI area | Functions | UI area | Functions |
|---|---|---|---|
| A | Return to main screen | E | Current user |
| B | Select different views | F | Map view |
| C | Company information window | G | Map controls |
| D | Product documentation | H | Latest drilling plans |
Sites view
Drilling sites are managed in the Sites view. You can, for example, attach drilling plans for a drilling site. You can also add/remove drilling sites from the Cloud Service. Open the selected drilling site by clicking its name in the Sites view.
Resources view
Resources view is used for managing the resources available for a drilling site. You can, for example, add files or comments related to individual drilling rigs or other equipment from a drilling site. You can view the selected resource by clicking its name in the Resources view.
Users view
In Users view, you can add or edit users of the Sense Systems Cloud Service.
Reports view
The Reports view is used for viewing drilling efficiency of a selected site/resource within a chosen timespan.
Licenses view
The Licenses view is used for viewing license information and for registering tablet computers to the Cloud Service.
Manuals
The Manuals view provides online access to Sense Systems product documentation.
Company information window
The Company infomation window shows the Sites and Resources of the current company.
Drilling Plan overview
Latest drilling plans are listed in the Drilling Plan overview. You can view the latest drilling plans sorted by their state or measurement time. You can open the selected drilling plan by clicking its name in the plan overview window.
