Inspecting measured holes

In the drill hole inspection view, the holes are presented in an interactive 3D view and a 2D planar view. The 3D view can be turned as well as zoomed in and out. The cross-section plane in the view can be moved.

Open the additional information for a drilled hole by clicking the ᴠ button at the upper edge of the view. Close the information by clicking the ᴧ button.
The additional information window contains the following data:
- Site, level and plan information
- Measurement date
- Measurement module ID
- Compass heading including declination. Declination (in this case +9 degrees) is derived from the latest GPS position of the tablet computer.
- Measurement interval
- Number of measurement points
- Total hole length
- Distance from the desired hole position
- Hole inclination
- Hole Azimuth value.
The hole being inspected can be changed by clicking the Menu button at the bottom edge of the view.

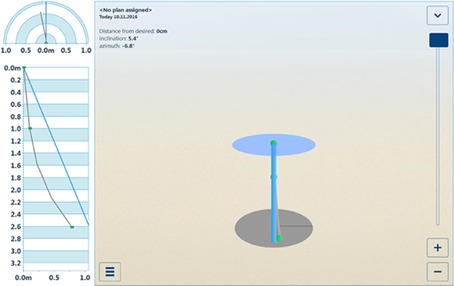

You can view more detailed information on the hole in the planar views on the left by moving the blue cross-section plane.

The upper planar view indicates the azimuth of the hole. The starting direction is always shown as up in the view. The lower planar view shows the angle and length of the hole as well as its deviation from the planned specifications.
