Installing a measurement module

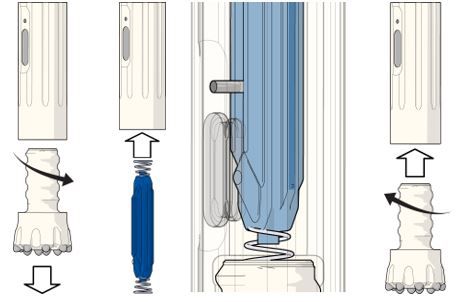

Figure 1. Installing a measurement module

1. Detach the drill bit from the adapter.
2. Check that the measurement module has a spring at both ends.
3. Insert the measurement module in the adapter with the antenna facing down.
4. Ensure that the guide pin is above the antenna in the groove and that the antenna is aligned with the communication window.
5. Attach the drill bit to the adapter.
