Creating a new site

  1. Create a new site by clicking the New Site icon.

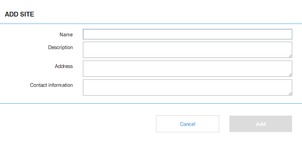

  2. Enter site name, description, address and contact information and click Add when ready.
    The new site will be displayed in the Sites view. Select the site in order to add levels to it.
  3. Add a new level for the site by clicking the Add Level icon.
  4. Enter a name for the level and click Add when ready.
  5. Select the level in order to add drilling plans to it.
  6. Add a new drilling plan for the level by clicking the Add Plan icon.
  7. Enter a name and compass heading for the drilling plan and click Add when ready.

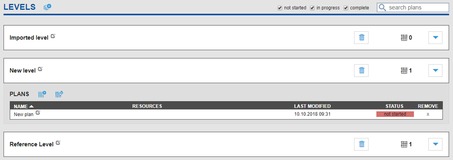

The new level and drilling plan are displayed in the Levels section of the Site view, when the level is selected.

Tip: The site/level/plan hierarchy names can be edited by clicking them, if necessary.
Parent topic: Sites view
